Drill Bushings
Headless Press Fit
IN-STOCK

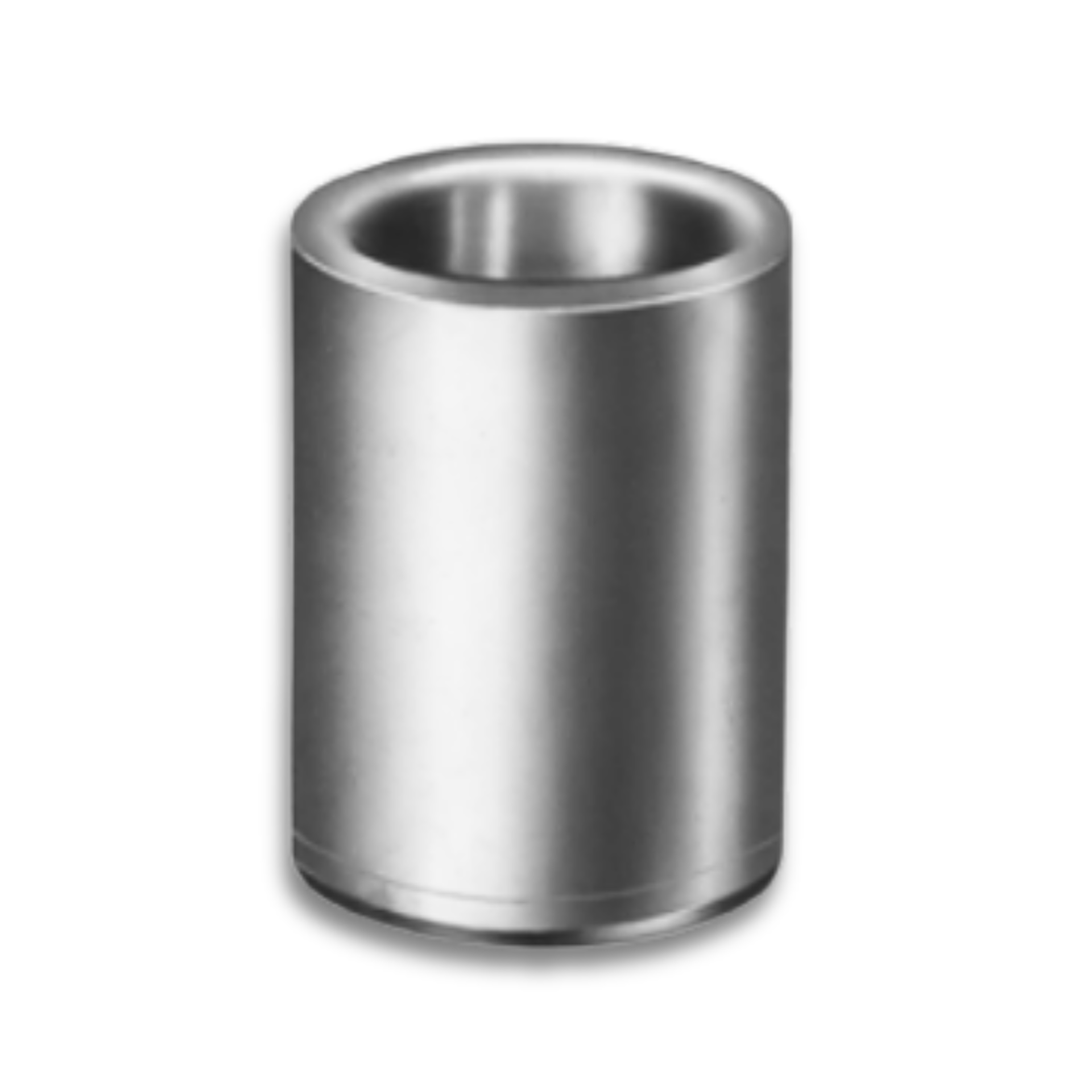

Headless Press Fit - P
Headless press-fit drill bushings are designed for permanent installation in jigs, fixtures, and tooling. The headless design allows the bushing to sit flush with the fixture surface, making it suitable for applications where a headed bushing would interfere with part placement or available space.
Manufactured in-house, our bushings are available in custom inside diameters, outside diameters, and lengths to meet application requirements.
Headless Press Fit - P
- ID Range: #80 to 2-17/64" (0.0135"–2.2656")
- OD Range: 5/32" to 2-3/4" (0.1562"–2.7522")
- Length Range: 1/4" to 3"
- Available in ANSI standard sizing
- Ground and unground options available
To place a custom order, please complete our order form or contact us directly to discuss your dimensional requirements.
Head Press Fit

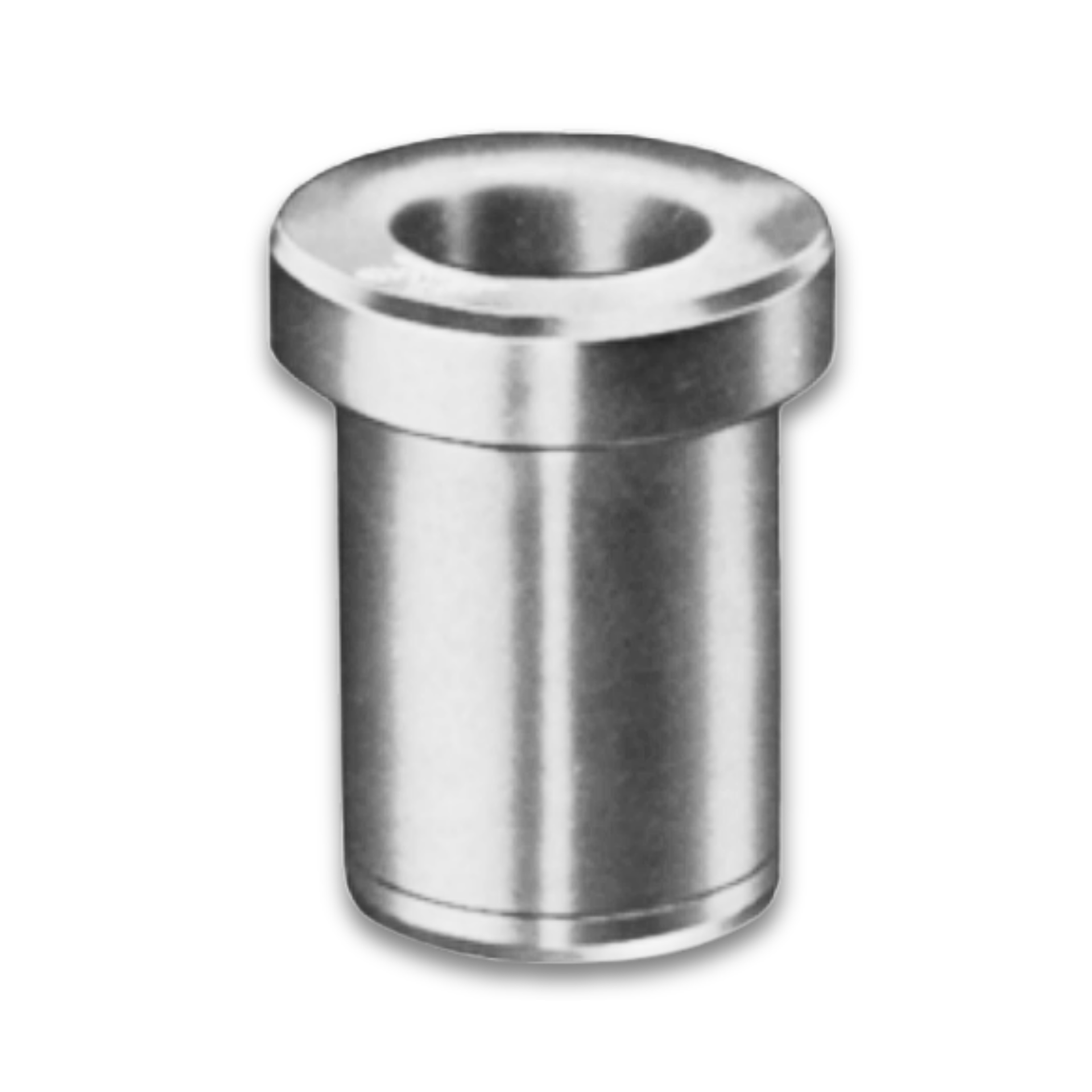

Head Press Fit - H
Head press-fit drill bushings are designed for heavy-duty applications requiring maximum stability and load resistance. The flanged head provides a positive stop against the fixture surface, helping prevent axial movement and ensuring consistent alignment under demanding operating conditions.
Manufactured in-house, our bushings are available in custom inside diameters, outside diameters, and lengths to meet application requirements.
Head Press Fit - H
- ID Range: #80 to 1-49/64" (0.0135"–1.7656")
- OD Range: 5/32" to 2-1/4" (0.1575"–2.2525")
- Length (Under Head): 1/4" to 3"
- Thin wall options available
- Head dimensions determined by OD selection
- Ground and unground options available
- Available in ANSI standard sizing
To place a custom order, please complete our order form or contact us directly to discuss your dimensional requirements.
Slip-Fixed Renewable
IN-STOCK
Slip-Fixed - SF
Slip fixed renewable drill bushings are designed for use in renewable bushing systems where quick replacement is required without removing the fixture body. The slip fixed design allows the bushing to be installed and removed from a fixed liner while maintaining accurate tool guidance during operation.
Manufactured in-house, our bushings are available in custom inside diameters, outside diameters, and lengths to meet application requirements.
Slip-Fixed - SF
- ID Range: #80 to 1-7/8" (0.0135"–1.8750")
- OD Range: 3/16" to2-1/4" (0.1875"–2.2500")
- Length (Under Head): 1/4" to 3"
- Thin wall options available
- Head dimensions determined by OD selection
- Available in ANSI standard sizing
To place a custom order, please complete our order form or contact us directly to discuss your dimensional requirements.
Nurlock
IN-STOCK

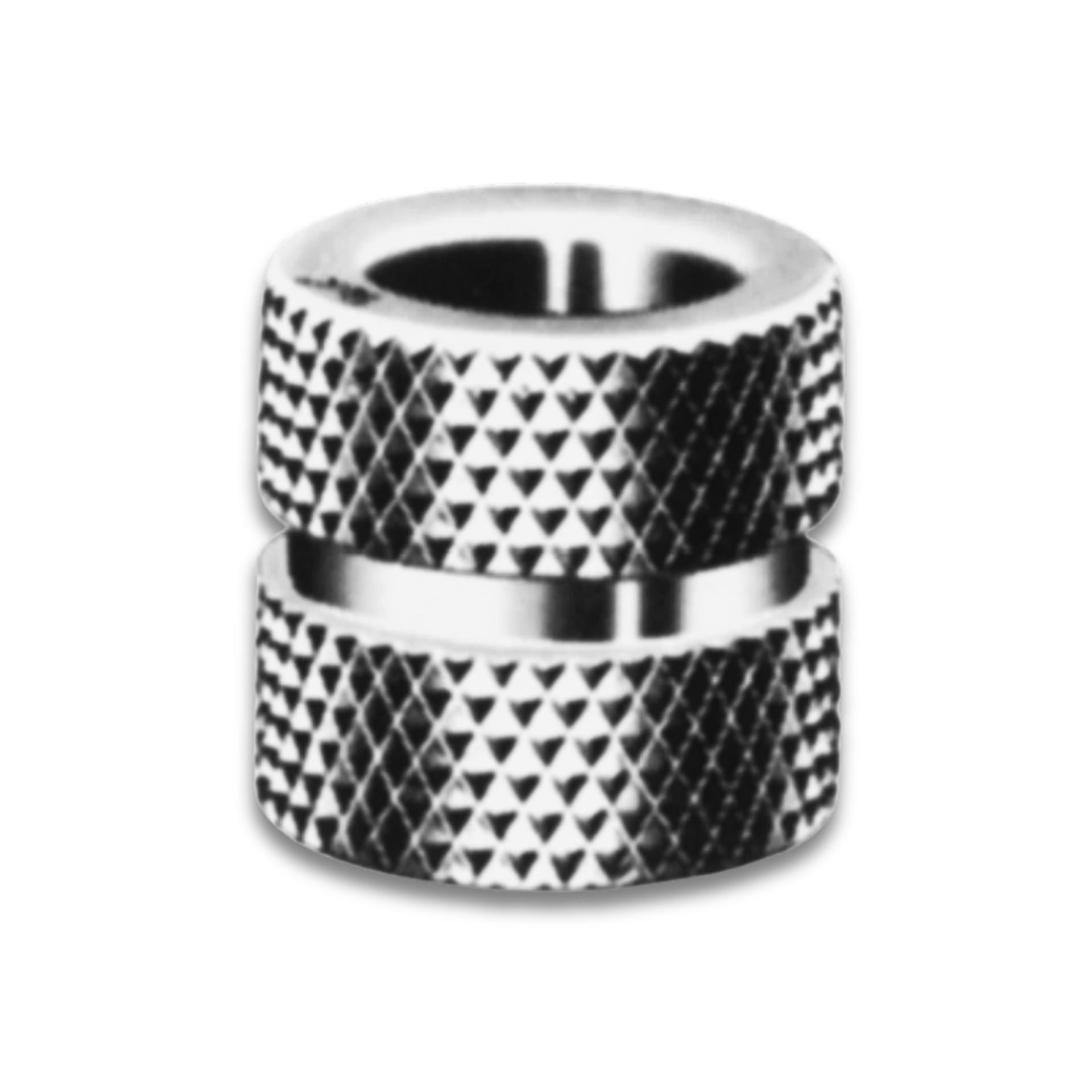

Nurlock - N
Nurlock drill bushings are designed for permanent installation in jigs, fixtures, and tooling, particularly in plastic tooling applications. The diamond knurled exterior provides superior holding strength and helps resist both rotational and axial movement after installation.
Manufactured in-house, our bushings are available in custom inside diameters, outside diameters, groove configurations, and lengths to meet application requirements.
Nurlock - N
- ID Range: #55 to 1-1/32" (0.0520"–1.0312")
- OD Range: 13/64" to 1-3/8" (0.2180"–1.3850")
- Length Range: 1/4"to 3"
- Grooves per Length: 1/4" to 1/2" (1 Groove), 3/4" to 1-1/2" (2 Grooves), 1-3/4" to 3" (3 Grooves)
- Available in ANSI standard sizing
To place a custom order, please complete our order form or contact us directly to discuss your dimensional requirements.
NurlCast

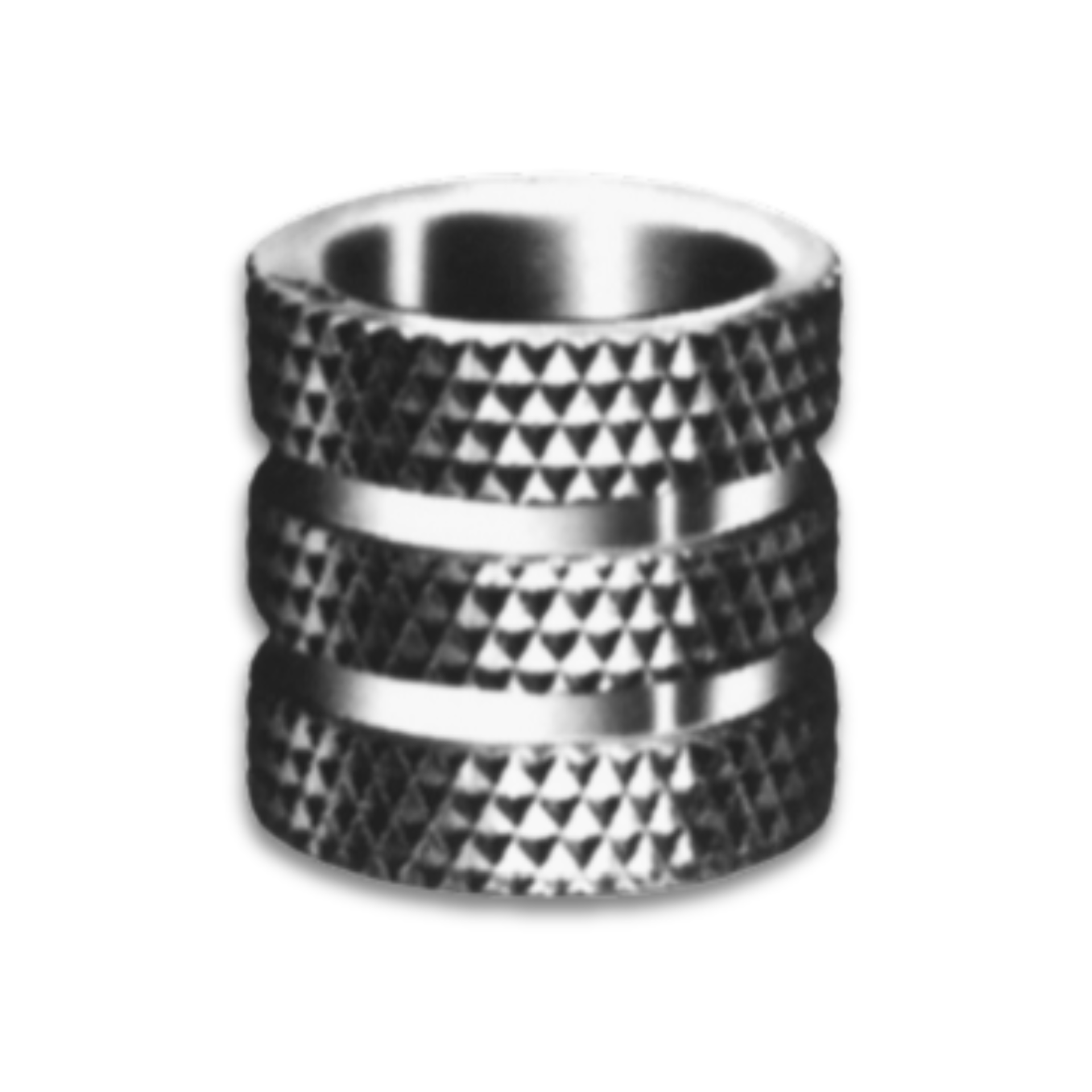

NurlCast - NC
NurlCast drill bushings are designed for cast-in or potted installation in jigs, fixtures, and tooling. The exterior design promotes mechanical locking within molded or cast materials, providing secure retention and resistance to both rotational and axial forces.
Manufactured in-house, our bushings are available in custom inside diameters, outside diameters, groove configurations, and lengths to meet application requirements.
NurlCast - NC
- ID Range: #55 to 1-1/32" (0.0520"–1.0312")
- OD Range: 13/64" to 1-3/8" (0.2180"–1.3850")
- Length Range: 1/4" to 3"
- Grooves per Length: 1/4" to 1/2" (1 Groove), 3/4" to 1-1/2" (2 Grooves), 1-3/4" to 3" (3 Grooves)
- Available in ANSI standard sizing
To place a custom order, please complete our order form or contact us directly to discuss your dimensional requirements.
SerCast

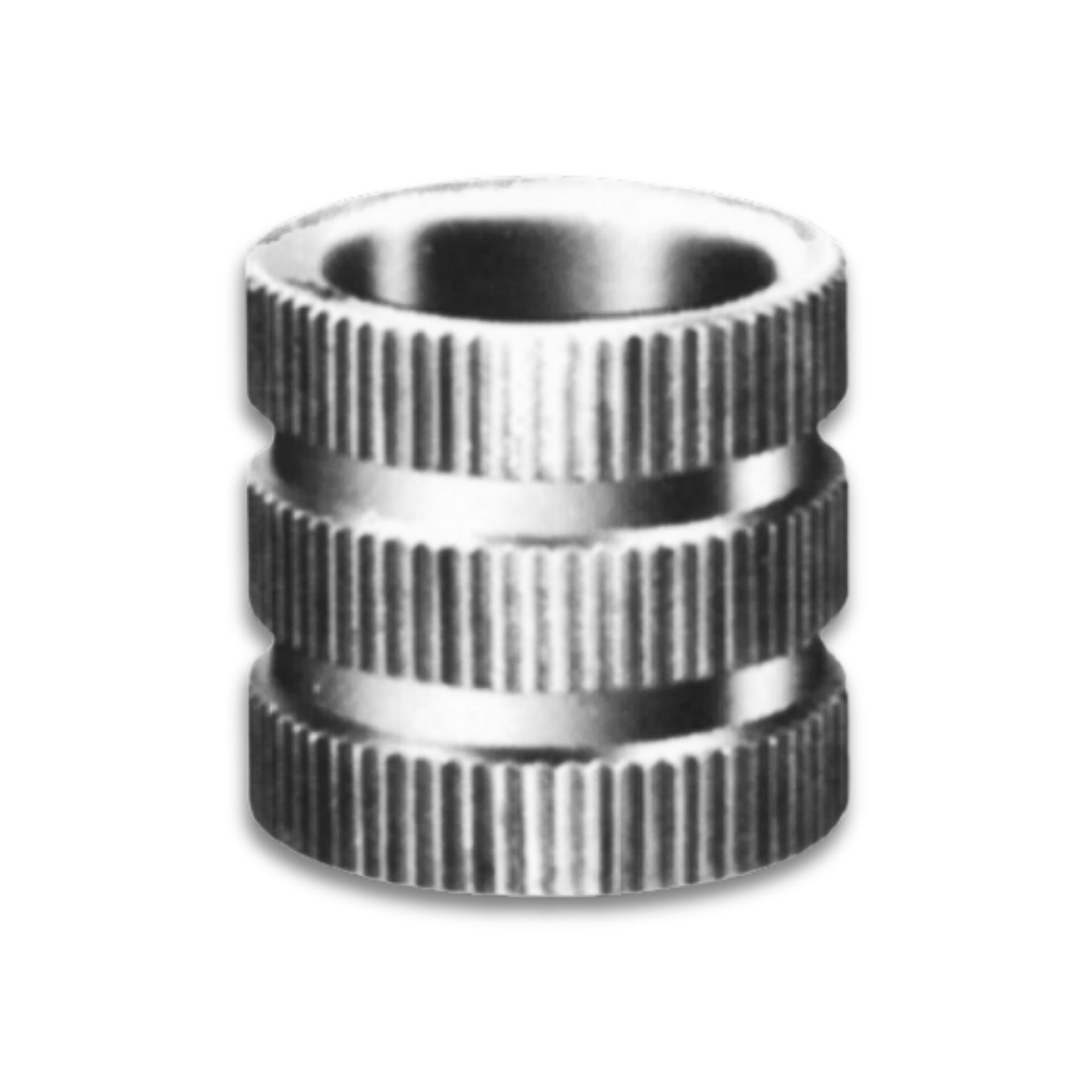

SerCast - SC
SerCast drill bushings are designed for press-fit installation into soft materials and plastic fixtures. The serrated exterior provides secure mechanical grip, allowing the bushing to be pressed in while maintaining excellent holding strength under load.
Manufactured in-house, our bushings are available in custom inside diameters, outside diameters, groove configurations, and lengths to meet application requirements.
SerCast - SC
- ID Range: #55 to 1-1/32" (0.0520"–1.0312")
- OD Range: 13/64"to 1-3/8" (0.2180"–1.3850")
- Length Range: 1/4" to 3"
- Grooves per Length: 1/4" to 1/2" (1 Groove), 3/4" to 1-1/2" (2 Grooves), 1-3/4" to 3" (3 Grooves)
- Available in ANSI standard sizing
To place a custom order, please complete our order form or contact us directly to discuss your dimensional requirements.
SerPress

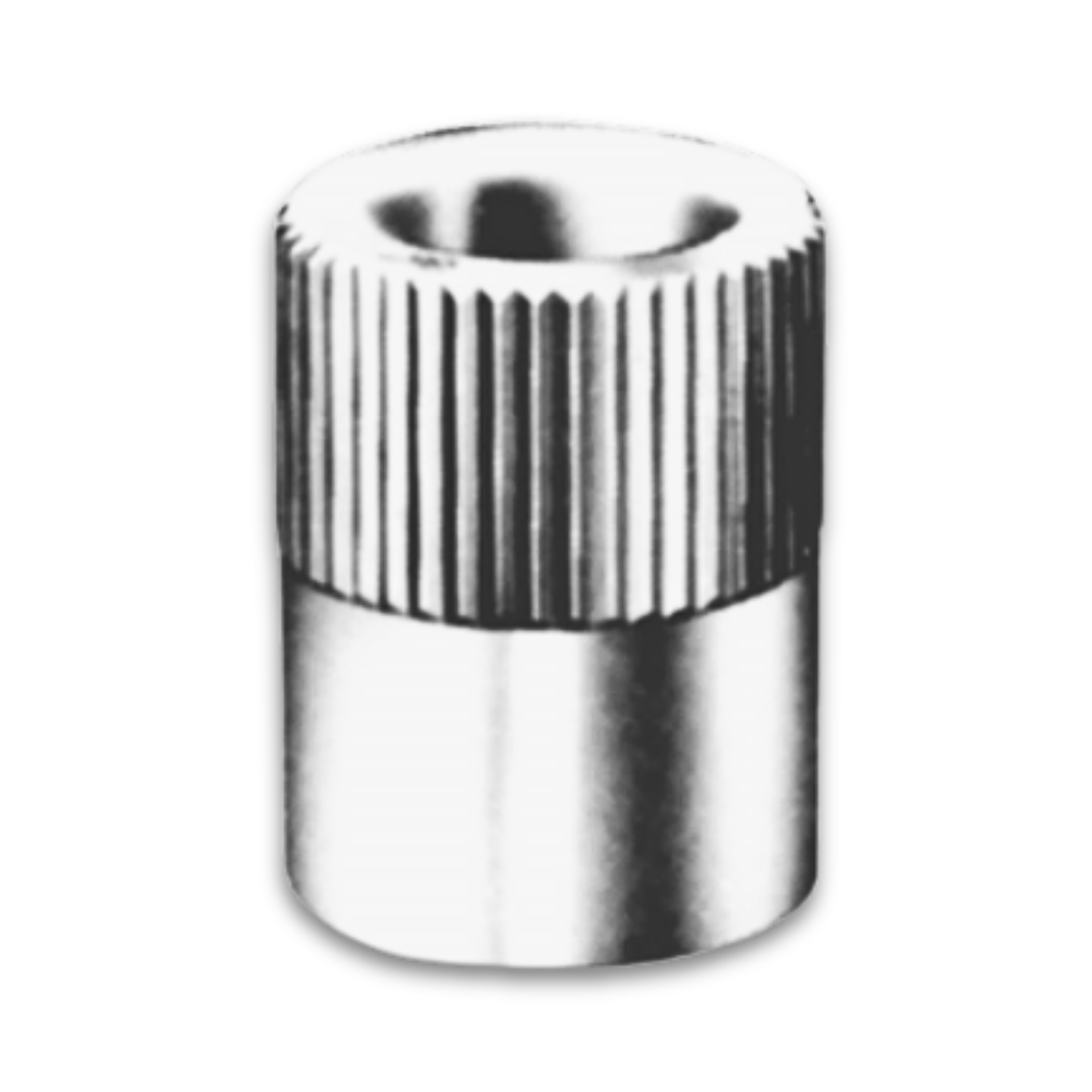

SerPress- SP
SerPress drill bushings are designed for press-fit installation in both metal and non-metal applications. The serrated exterior provides a secure mechanical lock that prevents spin-out and resists axial movement under load.
Manufactured in-house, our bushings are available in custom inside diameters, outside diameters, and lengths to meet application requirements.
SerPress
- ID Range: #55 to 49/64" (0.0520"–0.7656")
- OD Range: 13/64" to 1" (0.2031"–1.0000")
- Length Range: 1/4" to 1-3/8"
- Serrations: 0.25 mm–0.65 mm over ground O.D. diameter
- Available in ANSI standard sizing
To place a custom order, please complete our order form or contact us directly to discuss your dimensional requirements.
